EMC TESTING AND CERTIFICATES FOR MACHINES, DEVICES AND VEHICLES…
EMC TESTING AND CERTIFICATES
FOR MACHINES, DEVICES ANDVEHICLES…
…from the fields of automotive, industry, health, household, construction and agriculture
The increasing complexity of vehicles and other technical devices demands for increased electromagnetic compatibility testing to ensure the electric parts do not influence other components negatively. The EDAG EMC testing center has state-of-the-art testing equipment that allows us to test cars, trucks an agricultural machines and more in compliance with the legal requirements. The EMC center test standards are not exclusive to Germany; vehicles and devices can also be tested and certified in legal compliance with international standards.
The test center for electromagnetic compatibility is TISAX-certified, offers the highest level of data protection and will also be accredited by the Deutsche Akkreditierungsstelle GmbH (DAkkS) according to DIN EN ISO/IEC 17025.

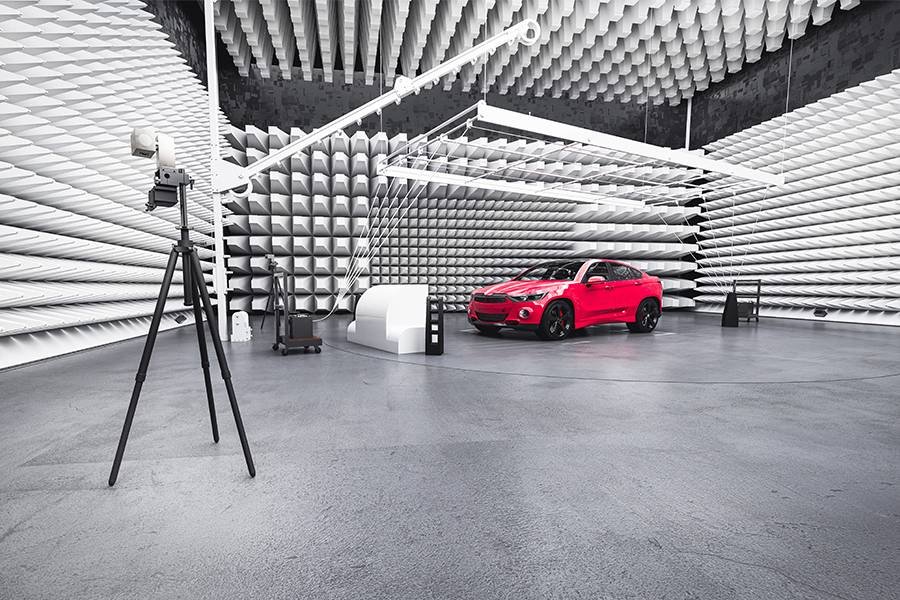

ANECHOIC CHAMBER SAC 10V-6/H
External dimensions: (L x W x H) 22.5 m x 15.6 m x 8.7 m
Dimensions of sliding door: 4.8 m x 4.8 m
Measuring track: 3 m, 5 m, 10 m
Turntable diameter: 9 m
ANECHOIC CHAMBER SAC-5
- External dimensions (L x W x H): 12.6 m x 8.1 m x 6.0 m
- Dimensions of sliding door: 3.0 m x 3.0 m
- Measuring track: 1 m, 3 m, 5 m
- Turntable diameter: 3 m
- Maximum load: 5 t
ANECHOIC CABIN ACTC
- External dimensions (L x W x H): 6.3 m x 5.4 m x 3.7 m
- Dimensions of door: 1.5 m x 2.1 m
- Measuring track: 1 m
SHIELDED CHAMBER
- External dimensions (L x W x H): 6.3 m x 3.9 m x 3.0 m
- Dimensions of door: 1.5 m x 2.1 m
