AEC‑Q200‑compliant chip ferrite beads support up to 5 A in high‑density PCB assemblies

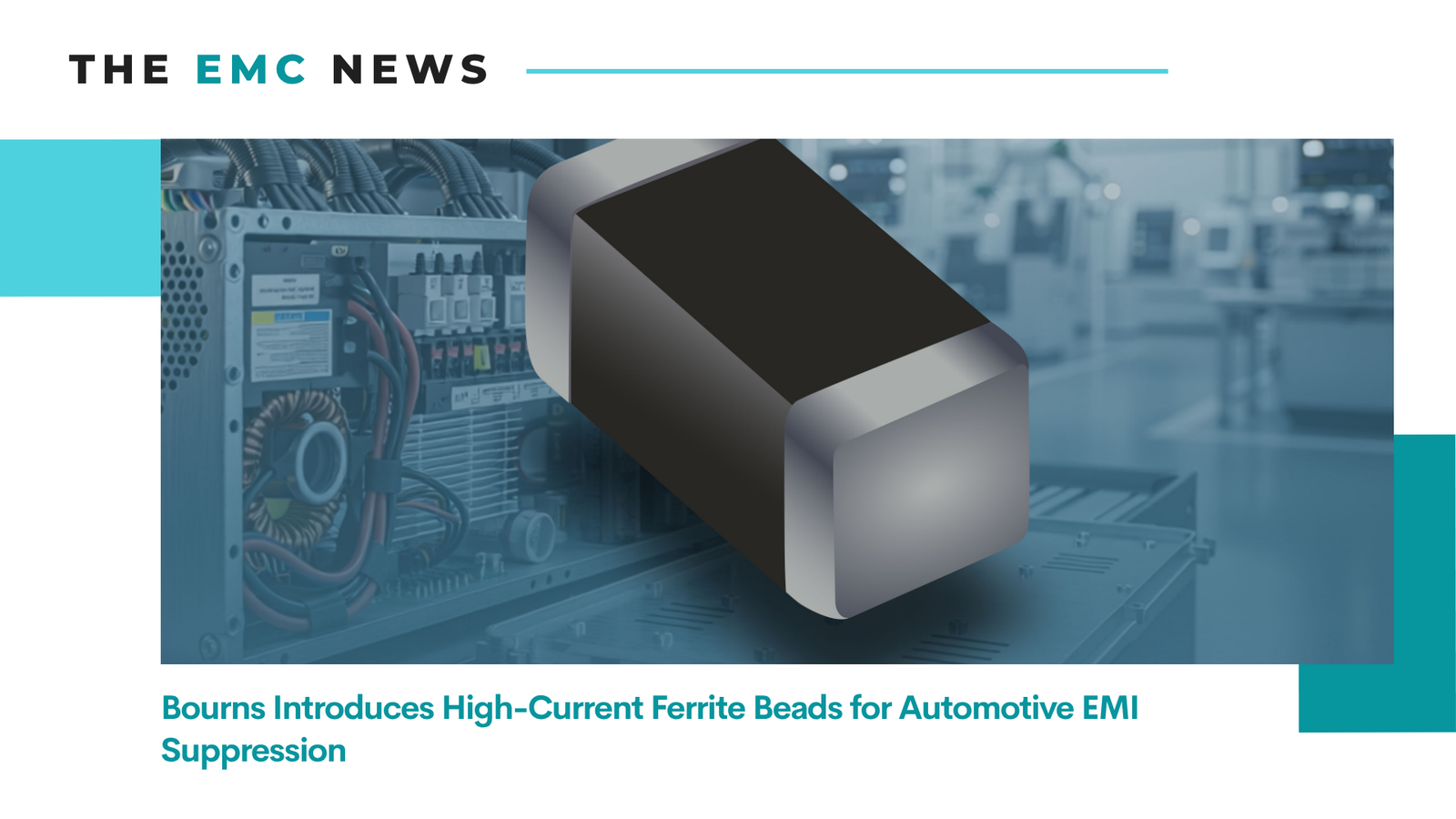

RIVERSIDE, Calif., June 3, 2026 – Bourns announces the release of the MH1608A Series High Current Chip Ferrite Beads, an AEC‑Q200‑compliant, automotive grade component family designed to suppress high‑frequency noise in space‑constrained electronic designs. The series combines a compact 1.6 × 0.8 mm footprint with low DC resistance and rated current capability of up to 5 A, supporting EMI control without increasing conduction losses in dense PCB layouts.
As automotive and industrial electronic systems continue to increase in current density, designers are required to manage conducted and radiated noise within shrinking board areas while maintaining thermal margins and meeting qualification requirements. Conventional ferrite beads may limit current handling or introduce excessive DC resistance, creating tradeoffs between EMI suppression effectiveness and power efficiency. These constraints are amplified in high‑density assemblies where available routing and component placement options are limited. The MH1608A Series is intended to address these design pressures by supporting higher current levels in a small, automotive‑qualified package.
“High‑current automotive designs often require EMI suppression components that do not become a thermal or electrical bottleneck,” said Edward Liu, Product Line Manager, Magnetics at Bourns. “The MH1608A Series is designed to support higher current handling in a compact footprint while meeting AEC‑Q200 requirements, which helps simplify component selection in dense automotive layouts.”
— Edward Liu, Director of Magnetic Components at Bourns
Design Features and Key Capabilities
- Compact 1608 package — 1.6 × 0.8 × 0.8 mm size supports high‑density PCB layouts
- High rated current capability — supports up to 5 A depending on impedance value
- Low DC resistance — minimizes power loss and temperature rise at rated current
- Wide impedance range — 30 Ω to 1000 Ω at 100 MHz for broadband noise suppression
- • Quality and reliability — automotive grade and AEC-Q200 compliant for electronic systems
- Environmental compliance — RoHS compliant* and halogen free**
Electrical Specifications
| Parameter | Range |
|---|---|
| Impedance @ 100 MHz | 30 Ω – 1000 Ω |
| DC Resistance (max.) | 0.02 Ω – 0.20 Ω |
| Rated Current (max.) | 1 A – 5 A |
| Operating Temperature | −55 °C – +150 °C |
| Package Size | 1.6 × 0.8 × 0.8 mm |
Target Applications
- EMI suppression in automotive power supplies
- High‑density automotive PCB assemblies
Availability
The MH1608A Series High Current Chip Ferrite Beads are available now through Bourns’ authorized distribution network. Full specifications, inventory status, and ordering information are available via the Bourns inventory search for the MH1608A Series. Samples may be requested through Bourns Customer Service.
