Tonscend Visual EMR Diagnostic and Analysis System Performance Upgrade
Large-area scanning near-field automated testing equipment is a kind of intelligent testing system based on near-field electromagnetic measurement technology, which is mainly used for electromagnetic compatibility (EMC) analysis of electronic equipment. Designed to comply with international standard IEC 61967-3, it supports the precise location of radiated emissions, signal integrity and sources of interference.
♥️Eight-degree-of-freedom mobile platform

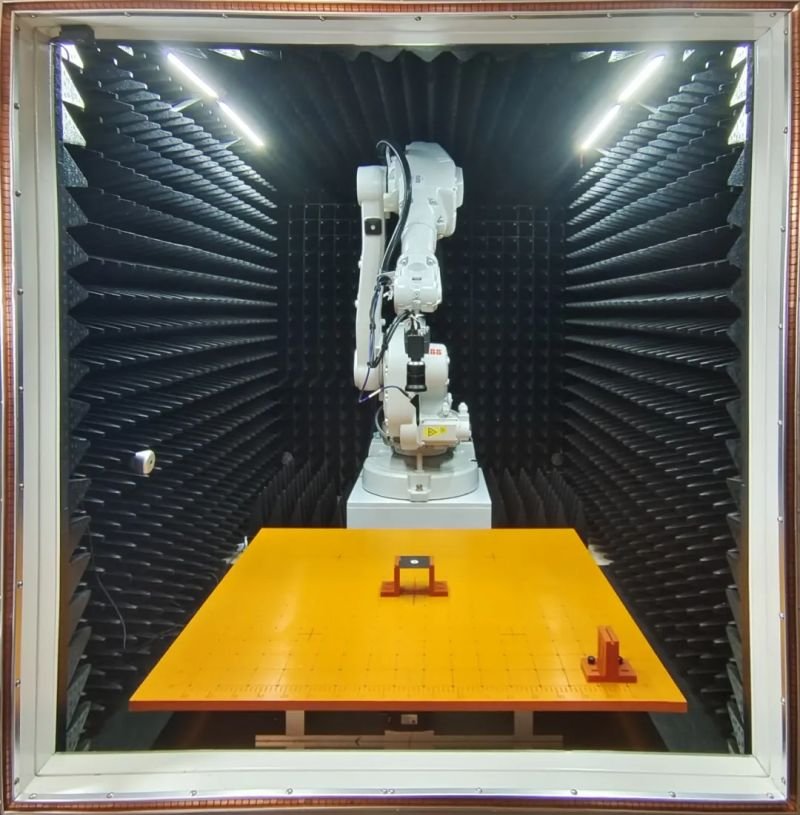

covers a large scanning area of 900mm x 900mm: a single scan can completely capture the radiation hotspots of large equipment.
♥️High-precision positioning
0.02mm positioning accuracy + 150KHz-40GHz full-band adaptation: accurately locking millimeter-wave and high-frequency signal leakage points to meet the needs of high-precision scenarios such as automotive electronics and aerospace.
♥️Automated testing
‘one-button’ fully automated testing: unmanned from path planning, data collection to report generation.
♥️Visualisation of results
The collected data is used to generate 2D/3D EMF distribution maps through dedicated software, which can be used to visually locate the source of radiation nuisance.
♥️Intelligent data analysis
Supports data comparison, split-screen comparison, spectrum analysis, harmonic analysis, noise filtering, frequency distribution, and automatic export of test reports.
♦️ Typical application
🔸 Communication equipment R&D
Detect the radiation performance of board level, semi-finished product and finished product of products, optimise the signal transmission path and reduce interference.
🔸Consumer Electronics Troubleshooting
Quickly locate PCB design defects (e.g., crosstalk, reflections) in smartphones and tablet PCs to improve product reliability.
🔸Automotive Electronics EMC Testing
Analyse the electromagnetic compatibility of in-vehicle electronic products and ensure the stability of self-driving sensors in complex electromagnetic environments.
🔸Video large screen equipment
Enhance the EMC of electronic blackboards, LCD TVs, car displays and other equipment.
🔸Medical Equipment Compliance Certification
Evaluates electromagnetic radiation for devices such as MRIs, pacemakers, etc. to meet the strict EMC standards of the medical industry.
